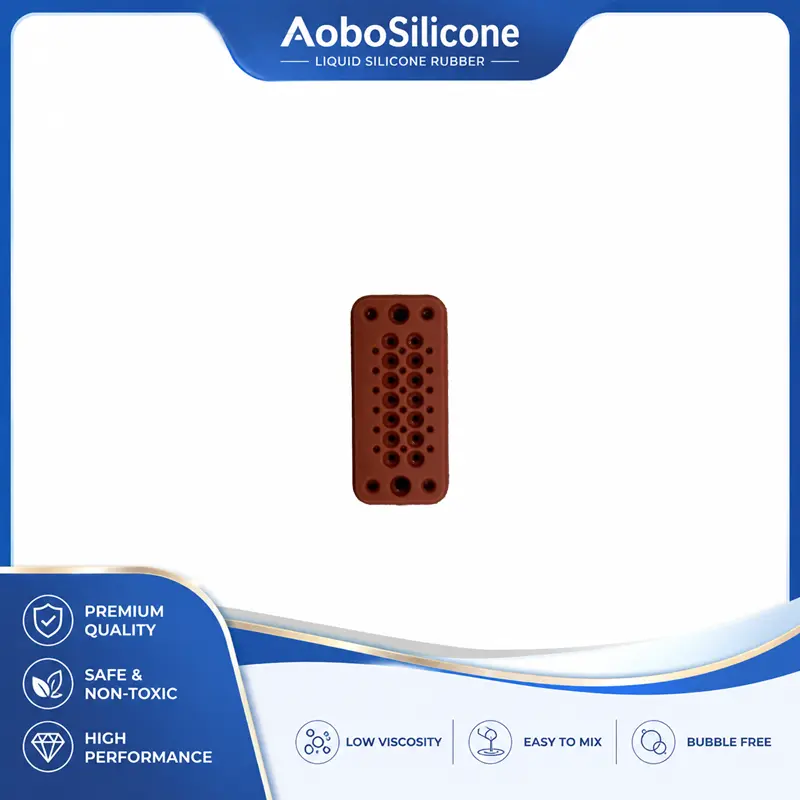

What is a Silicone Connector? A Full Guide to Its Uses, Materials and Selection

Across various connection scenarios in industrial manufacturing and civil equipment, elastic connectors with sealing, cushioning and weather-resistant properties have long been a core solution for harsh operating conditions. The silicone connector produced by Chinese manufacturer Aobo is one of the mainstream options for such demands.

Grade Classification	Core Material Properties	Operating Temperature Range	Key Performance Advantages	Typical Application Scenarios	Recommended IP Rating
General Industrial Grade	Methyl vinyl silicone rubber with reinforcing filler system	-60℃ ~ 200℃	Weather & UV resistant, oil and aging resistant, excellent sealing and cushioning performance	New energy wiring harnesses, outdoor lighting, heavy industry pipelines	IP67 and above
Food Contact Grade	Fumed silica reinforced silicone rubber, no odor leaching	-40℃ ~ 180℃	Inert and non-toxic material, easy to clean, compliant with food contact standards	Water purification equipment, food delivery pipelines, beverage processing equipment	IP65 ~ IP67
Medical Grade	High-purity medical silicone rubber, low extractables & good biocompatibility	-40℃ ~ 200℃	Resistant to high-temperature sterilization, good biocompatibility, non-sensitizing	Patient monitoring instruments, medical pipelines, connectors for drug delivery devices	IP67 and above
Conductive Elastic Type	Silicone rubber matrix filled with conductive carbon particles / metal particles	-50℃ ~ 150℃	Flexible crimp connection, low contact resistance, shock and vibration buffering	LCD display interconnection, elastic connection of PCB boards	---

These connectors are applied in multiple core fields.

In the new energy industry, they provide dustproof and waterproof sealing for outdoor energy storage equipment and automotive wiring harness connections, adapting to outdoor environments with alternating high and low temperatures.
In the food and water purification sectors, they fit the docking of various rigid and flexible pipelines, meeting hygiene requirements of being odor-free and easy to clean.
In the electronic display industry, elastic conductive types realize flexible crimping between screens and motherboards, buffering poor contact caused by vibration.
They are also widely used in medical equipment, outdoor lighting and heavy machinery pipelines.

Silicone rubber is the core base material, which can be formulated into different performance grades according to specific requirements.

Ordinary industrial-grade products have a temperature resistance range from -60℃ to 200℃, with UV resistance and aging resistance, suitable for long-term outdoor use.
Food-grade and medical-grade products comply with corresponding hygiene standards; made of inert and non-toxic materials, they can contact food media or withstand high-temperature sterilization.
Modified versions added with conductive particles can maintain elasticity while achieving stable conductivity. Products for high-pressure working conditions can be equipped with a braided reinforcement layer to improve tensile and pressure resistance.

When selecting models, you can follow the core logic of medium, temperature, application and pressure

1.First, confirm the ambient temperature and protection rating requirements --- outdoor water-exposed scenarios need to reach IP67 or above.
2.Then confirm the type of contact medium; food and medical scenarios require corresponding compliant base materials.
3.Finally, check the installation size and pressure parameters to ensure compatibility with existing components. Reasonable selection can give full play to the performance of silicone connectors and extend the service life of equipment.

Aobo Silicone is a source manufacturer with 23 years of focus on the silicone rubber industry. We support multi-specification customization and rapid prototyping, covering full-grade solutions for industrial, food and medical fields. For detailed parameters and quotations of silicone connectors, please feel free to contact us for consultation.
