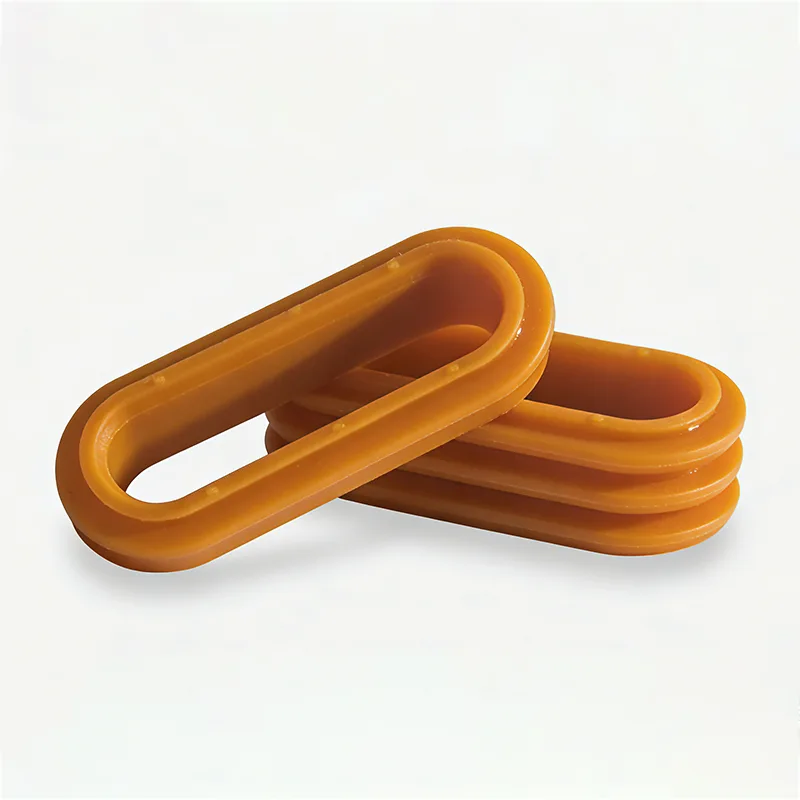

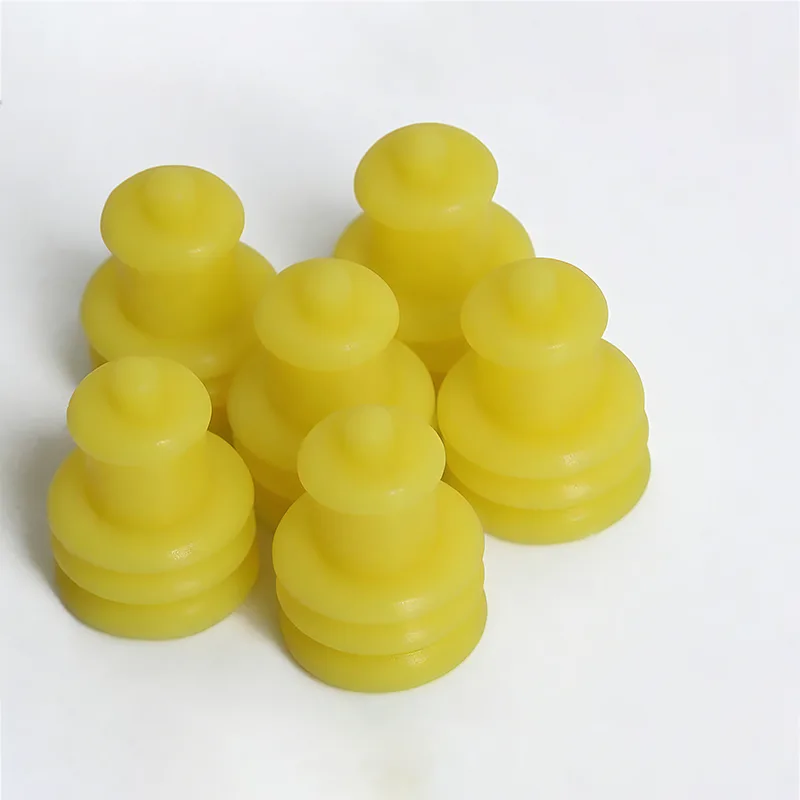

Automotive Connector Silicone Rubber Sealing Rings

Automotive connector silicone rubber sealing rings are silicone-based sealing components installed inside various automotive connectors (such as wiring harness connectors, fluid pipeline connectors, and sensor connectors). Their core function is to isolate external water, dust, oil contaminants and corrosive gases, while also protecting internal fluid media (e.g., coolant, brake fluid) or signal transmission components from external environmental interference, thus ensuring the connection stability, sealing performance and service life of the connectors.

These sealing rings typically boast excellent resistance to high and low temperatures (ranging from -40℃ to 200℃), aging resistance, insulation properties and elasticity. They are capable of adapting to the complex operating environments of different automotive areas such as the engine compartment, chassis and vehicle body, serving as critical basic components for automotive waterproofing, dustproofing and leakage prevention.

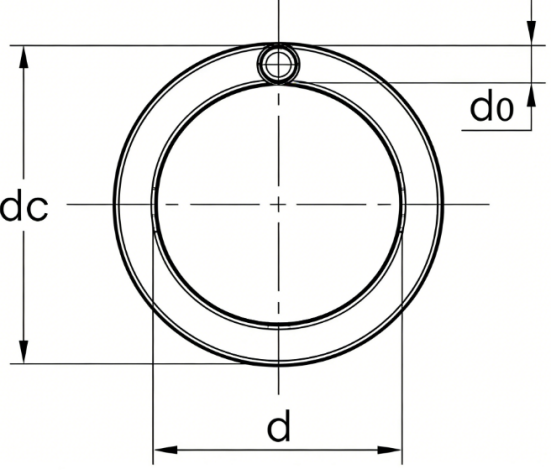

Product Parameter

What Are the Application Scenarios for Automotive Connector Silicone Rubber Sealing Rings?

The application scenarios of automotive connector silicone rubber sealing rings cover various connector parts across the entire vehicle. Their core purpose is to provide sealing protection for connectors requiring waterproofing, dustproofing and corrosion resistance, ensuring the stability of signal transmission or fluid delivery. Specific application scenarios are as follows:

1. Connectors Related to Engine Compartment

The engine compartment features high temperatures, heavy oil contamination and intense vibration. These silicone rubber sealing rings are mainly used for engine wiring harness connectors, sensor connectors (e.g., oxygen sensor connectors, water temperature sensor connectors, crankshaft position sensor connectors), fuel pipeline connectors, and cooling system pipeline connectors. They can isolate high-temperature oil contaminants and coolant generated by engine operation, while preventing rainwater and dust from entering, thus avoiding connector short circuits or poor contact.

2. Connectors Related to Chassis and Vehicle Body

The chassis is prone to contact with muddy water and gravel, while the vehicle body involves various electrical connections. The automotive connector silicone rubber sealing rings are suitable for chassis wiring harness connectors (e.g., ABS sensor connectors, brake system connectors), suspension system sensor connectors, door/window wiring harness connectors, and automotive lamp connectors (e.g., headlight connectors, taillight connectors, turn signal connectors). They can resist immersion in road muddy water and abrasion from gravel impact, ensuring the normal operation of vehicle body electrical components.

3. Connectors for Three-electric Systems of New Energy Vehicles

This is a core application scenario for new energy vehicles. The automotive connector silicone rubber sealing rings are applied to power battery pack connectors, motor controller connectors, charging gun connectors, and high-voltage wiring harness connectors. They are required to meet the demands of high sealing performance, high pressure resistance, and wide temperature resistance. They can not only prevent external moisture from entering and causing high-voltage short circuits, but also avoid battery coolant leakage, ensuring the safe operation of the three-electric systems.

4. Connectors for In-vehicle Electronic Devices

The in-vehicle environment is relatively stable, but basic sealing protection is still necessary. The silicone rubber sealing rings are used for in-vehicle entertainment system connectors, air conditioning control system connectors, airbag connectors, and reversing image camera connectors. They can prevent dust and condensed water inside the vehicle from entering, extend the service life of electronic devices, and avoid the failure of key functions such as airbags and reversing images.

How to Select Suitable Silicone Rubber Sealing Rings for Automotive Connectors?

To select suitable silicone rubber sealing rings for automotive connectors, it is necessary to consider the connector’s operating conditions, installation structure, medium contact type and automotive industry standards. Screen the products according to the following core steps and key points to ensure sealing performance and service life:

Step 1: Match Operating Condition Parameters

Temperature Resistance Matching: Select materials based on the temperature range of the connector’s installation location.

For high-temperature areas such as the engine compartment and exhaust pipe vicinity (Temperature up to 120℃–200℃): Prioritize VMQ (High-temperature Vulcanized Silicone) or FVMQ (Fluorinated Silicone). These materials resist high-temperature aging and are not prone to deformation or hardening.

Step 2: Match Connector Installation Structure

Precision Dimension Matching: Customize the sealing ring dimensions according to the inner diameter, outer diameter and cross-sectional diameter of the connector’s sealing groove. The interference fit should be controlled within 8%–15%. An insufficient interference fit cannot generate enough preload, while an excessive interference fit may cause assembly difficulties and permanent deformation under long-term compression.

Step 3: Comply with Automotive Industry Standards and Certifications

The products must meet mandatory automotive industry standards, such as the IATF 16949 system certification, to ensure compliance in the production process.

Step 4: Verify Actual Sealing Performance

Conduct sampling IP rating tests (e.g., IP67/IP6K9K) to simulate high-pressure washing and immersion environments, and confirm no leakage.

Perform high-low temperature cycle aging tests to verify whether the elasticity and sealing performance of the sealing rings degrade after long-term use.

Conduct vibration tests: Simulate the vibration conditions during vehicle operation to ensure the sealing rings do not fall off or fail.
