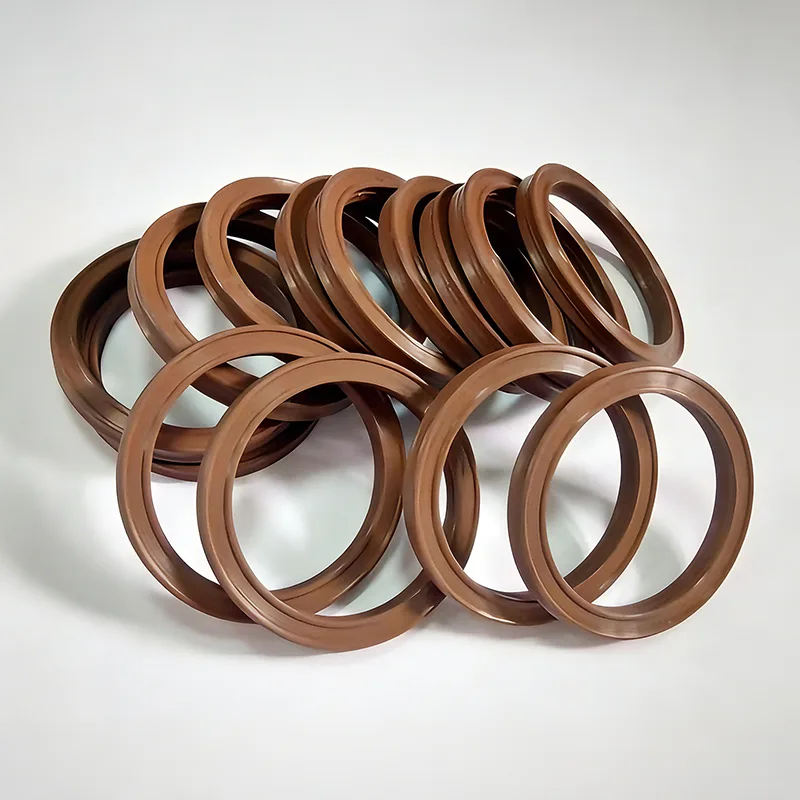

Silicone Rubber X-Rings
As a professional silicone rubber X-rings integrated supplier, factory, and manufacturer of R&D, production and sales, Aobo Silicone holds authoritative certifications including ISO9001, ISO14001 and IATF 16949. Adhering to the principle of "Stable Quality, Customer Satisfaction", all our products are made of premium materials that meet ROHS, FDA, REACH, LFGB and UL requirements. We also offer flexible customization services to meet your specific needs. Feel free to contact us or pay a visit to our facility!

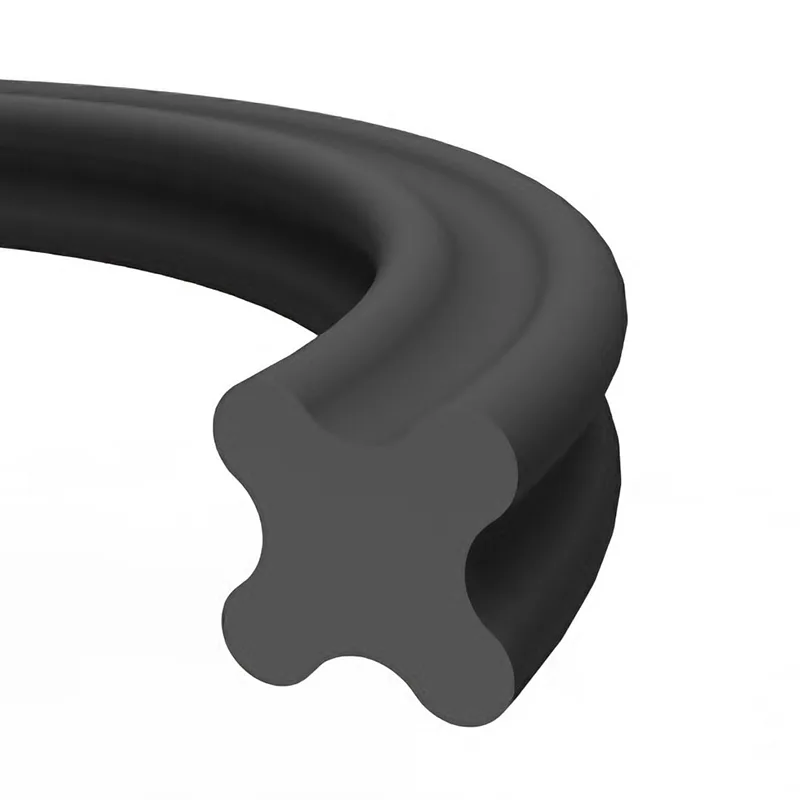

The core reason for naming it silicone rubber X-rings is due to standard X shaped cross-section. It is a self-energized, double-acting seal that achieves sealing by means of contact stress on the sealing interface. When installed in grooves of various forms, its radial or axial pre-compression provides initial sealing capability. As the system pressure rises, the compression amount increases accordingly, and the contact stress grows simultaneously. Its cross-sectional shape enables uniform pressure transmission in all directions, and the superimposed sealing force increases with the rise of system pressure, thus achieving a reliable sealing effect.
Product’s application
Silicone rubber X-rings are widely used in many areas. In order to make the X-shaped sealing rings, which serve as sealing elements, adapt to the given application scenarios, the following detailed application scenarios are summarized:
|
System type |
Core application areas |
Applicable Equipments/Scenarios |
|
Hydraulic Systems |
Hydraulic cylinders（Piston, Piston rods） |
Excavator、Loader、Crane(Movable arm/stick cylinder),Injection molding machine / Die-casting machine (Clamping cylinder / injection oil cylinder), machine tool hydraulic slide table |
|
Hydraulic components |
Directional control valve, relief valve, pressure reducing valve, hydraulic control system, hydraulic station |
|
|
Hydraulic pump/motor |
Gear pump, vane pump, piston pump, hydraulic power unit, petroleum/mining machinery |
|
|
High-pressure piping and joints |
High-pressure hydraulic oil pipes, flanges, sealed rotary pipe joints, chemical/ water supply and drainage/ gas engineering |
|
|
Pneumatic Systems |
Cylinder(Piston,Piston rod) |
Automated production line cylinders, thin-type cylinders, rodless cylinders, pneumatic manipulators, material grasping/workpiece positioning equipment |
|
Pneumatic valve components |
Pneumatic directional valve, flow/pressure control valve, pneumatic control system, pneumatic workstation |
|
|
Vacuum system |
Vacuum generator, vacuum suction cup, vacuum valve, electronic component adsorption, semiconductor manufacturing, packaging machinery |
|
|
Pneumatic three-way valve assembly |
Air filters, oil misters, pressure reducers, food processing machinery, electronic assembly equipment pneumatic circuits |
Material selection recommendations
|
System Type |
Recommended Material |
Temperature Range |
|
Hydraulic system |
NBR,FVMQ |
-30℃~120℃；-20℃~250℃ |
|
Conventional pneumatic system |
VMQ, NBR |
-40℃~200℃；-30℃~120℃ |
|
Vacuum/high temperature pneumatic system |
FKM,FVMQ |
-20℃~260℃；-20℃~250℃ |
Core advantages
1. Bidirectional Sealing: The four-lip structure enables bidirectional sealing without the need for reverse seals. It features uniform pressure distribution and excellent internal and external leakage prevention.
2. Low Friction & Wear Resistance: With a small contact area and built-in lubrication cavities, it reduces friction resistance by over 30% and extends seal service life by more than 50%.
3. Wide Pressure Adaptability: It can withstand pressures ranging from vacuum to 40MPa, making it suitable for both hydraulic and pneumatic applications. No additional retaining rings are required under high-pressure conditions.
4. Anti-Twisting & Easy Installation: It resists spiral twisting with parting lines away from the sealing surface. It fits standard O-ring grooves for convenient assembly and disassembly.
